ALPHA BIDET

T Valve for Skirted Toilets - JX, iX Hybrid, GX Wave

TV-SKRT

$21.95
/

Are you trying to install an electronic Alpha Bidet seat on a skirted toilet, but can't access the fill valve under the tank? Do you have a 3/8" shut-off valve at the wall and wish you could add a t-valve there instead of at the toilet's fill valve?  We have a solution for you.

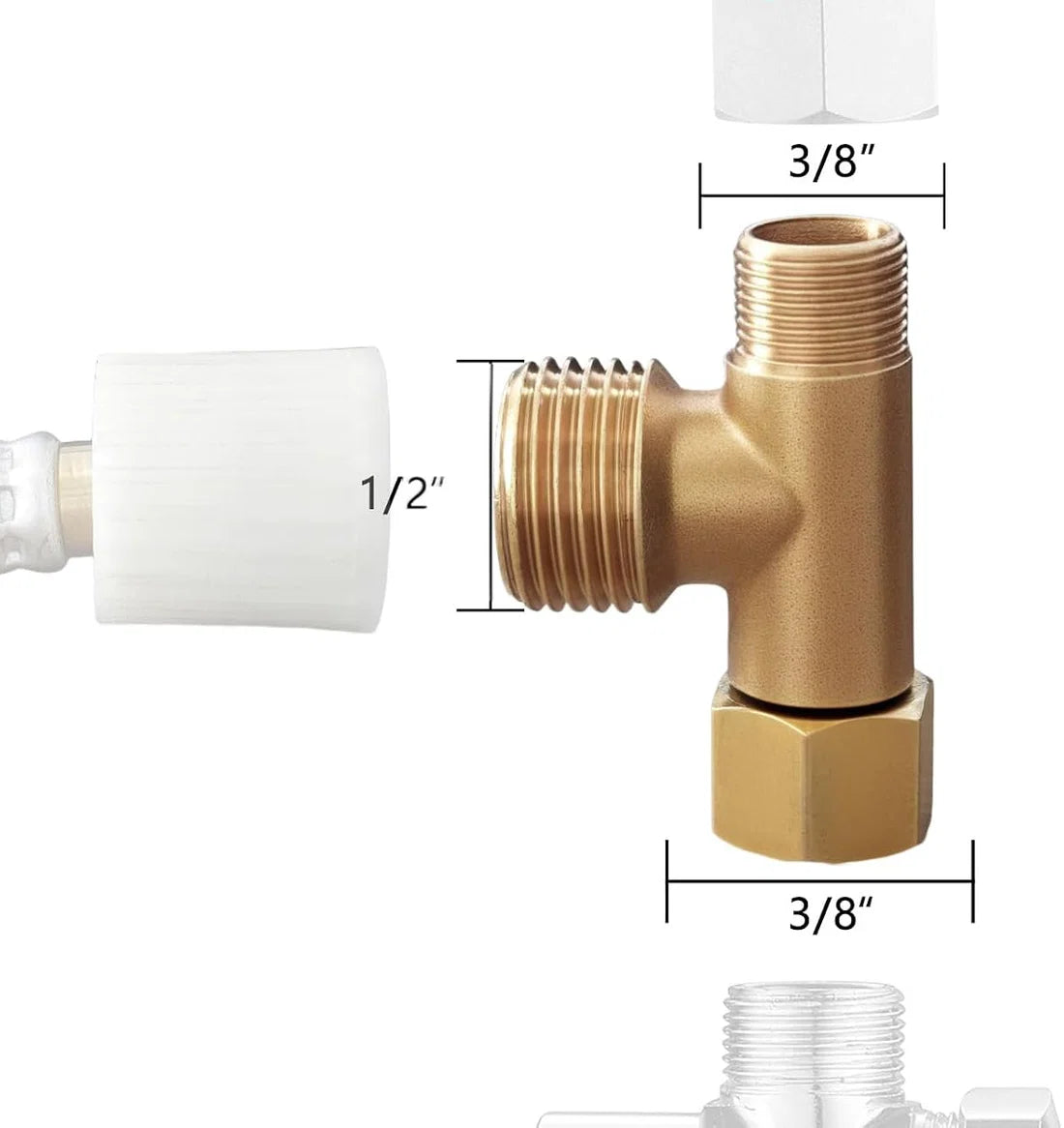

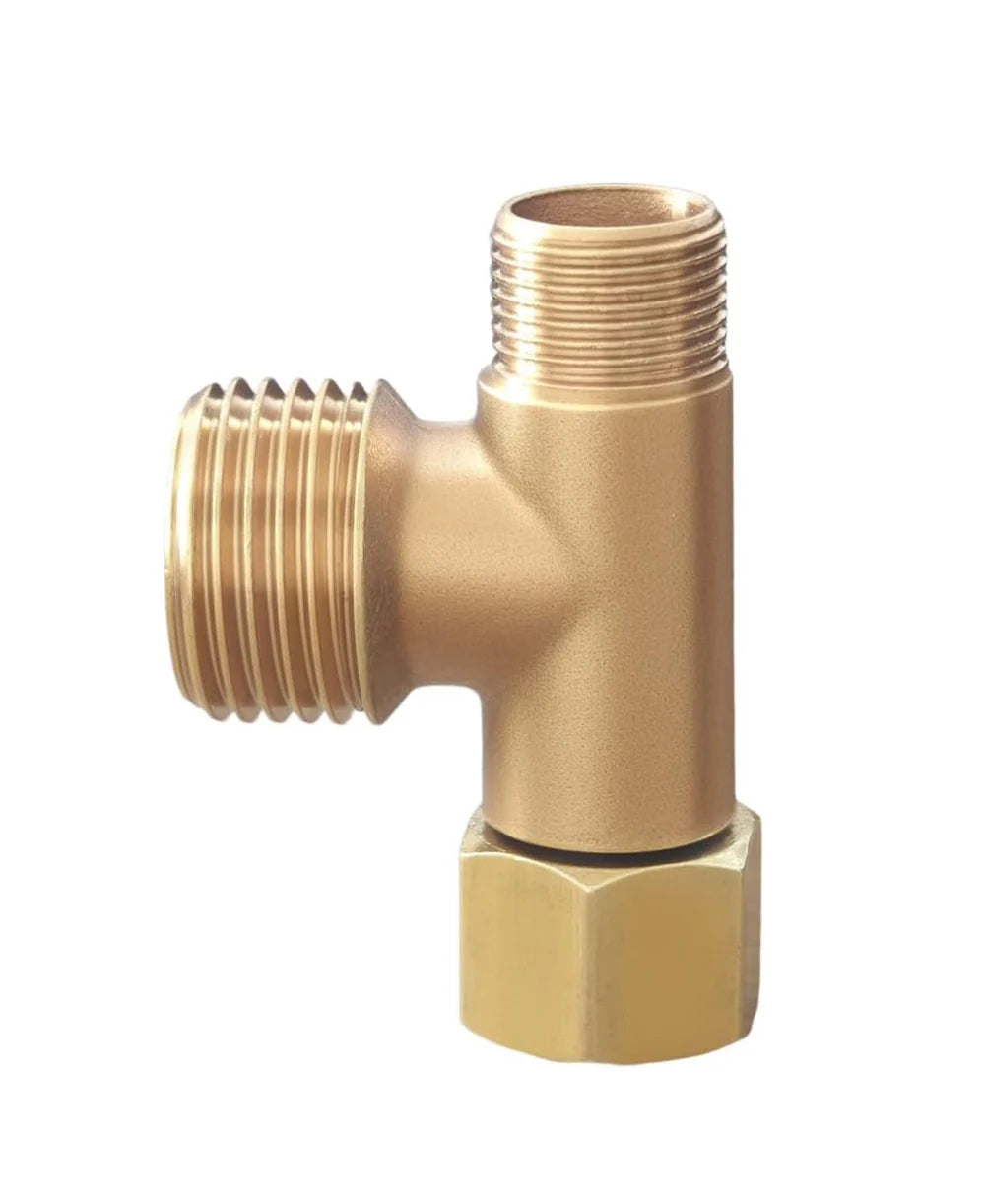

This 1/2" t-valve comes with 2 adapters that converts the top male and bottom female connections to 3/8" compressions threads.  Install this package between your current toilet supply hose and the shut-off at the wall.  This will give you a 1/2' pipe thread so you can connect the bidet seat of your dreams to your skirted toilet.


Top: 3/8" compression female threaded
Side: 1/2" male threaded
Bottom: 3/8" compression male threaded

**Not compatible with the Alpha ONE V2**

Is your toilet compatible with an Alpha Bidet?





1 PIECE VS 2 PIECE

  • 2 piece toilets are the most common residential style toilet. If you have one, great, our Alpha Bidets will fit.

  • 1 piece toilets have the tank and bowl molded into a seamless unit. If you have one, you'll want to check the "Special Cases" section below.

MEASURING YOUR BOWL

  • A:
    • The UX Pearl and iX Pure require a minimum of 1.4" of clearance
    • The JX2 requires a minimum of 1.5" of clearance
    • The GX Wave requires a minimum of 1.75" of clearance
  • B:
    • The JX2 requires a 5.5" distance (standard)
    • The UX Pearl, iX Pure, and GX Wave will accept a range of 5"-7"

  • C: Most elongated bowls measure 18.5" from the bolts. Most rounds measure about 16.5"

SPECIAL CASES

1 PIECE TOILET, NO CURVE

If your 1 piece toilet's tank meets the bowl at close to a 90 degree angle, then it's compatible.

Examples:
Kohler Memoirs (pictured)
TOTO Ultramax & Supreme
Woodbridge T-0001

1 PIECE TOILET, FRENCH CURVE

If your 1 piece toilet has a tank where the sides curve forward, then it MAY NOT be compatible. Contact us for more details.

Examples:
Kohler San Raphael (pictured, only JX2 fits)
Kohler San Souci (JX2, iX Pure, UX Pearl fit)
Kohler Rialto (not compatible)

COMPACT ELONGATED TOILET

Some elongated toilets have a more compact bowl and not full size. They usually fit an elongated Alpha Bidet, but it may hang over the front edge of the bowl by 1".

Examples:
Kohler Santa Rosa (pictured, JX2, iX Pure, UX Pearl fit)
American Standard Compact Cadet 3 (JX2, iX Pure, UX Pearl fit)

SKIRTED TOILET

Skirted toilets have a concealed trapway for easy cleaning. They are usually compatible with Alpha Bidets, but may require extra installation parts.

Examples:
Kohler Salle (pictured)
TOTO Aquia
Click here to view our installation guides
