T Valve for Skirted Toilets - Alpha ONE

T Valve for Skirted Toilets - Alpha ONE

TV-ST

Regular price $12.95
/

Are you trying to install an Alpha ONE V2 on a skirted toilet, but can't access the fill valve under the tank? Do you have a 3/8" shut-off valve at the wall and wish you could add a t-valve there instead of at the toilet's fill valve?  We have a solution for you.

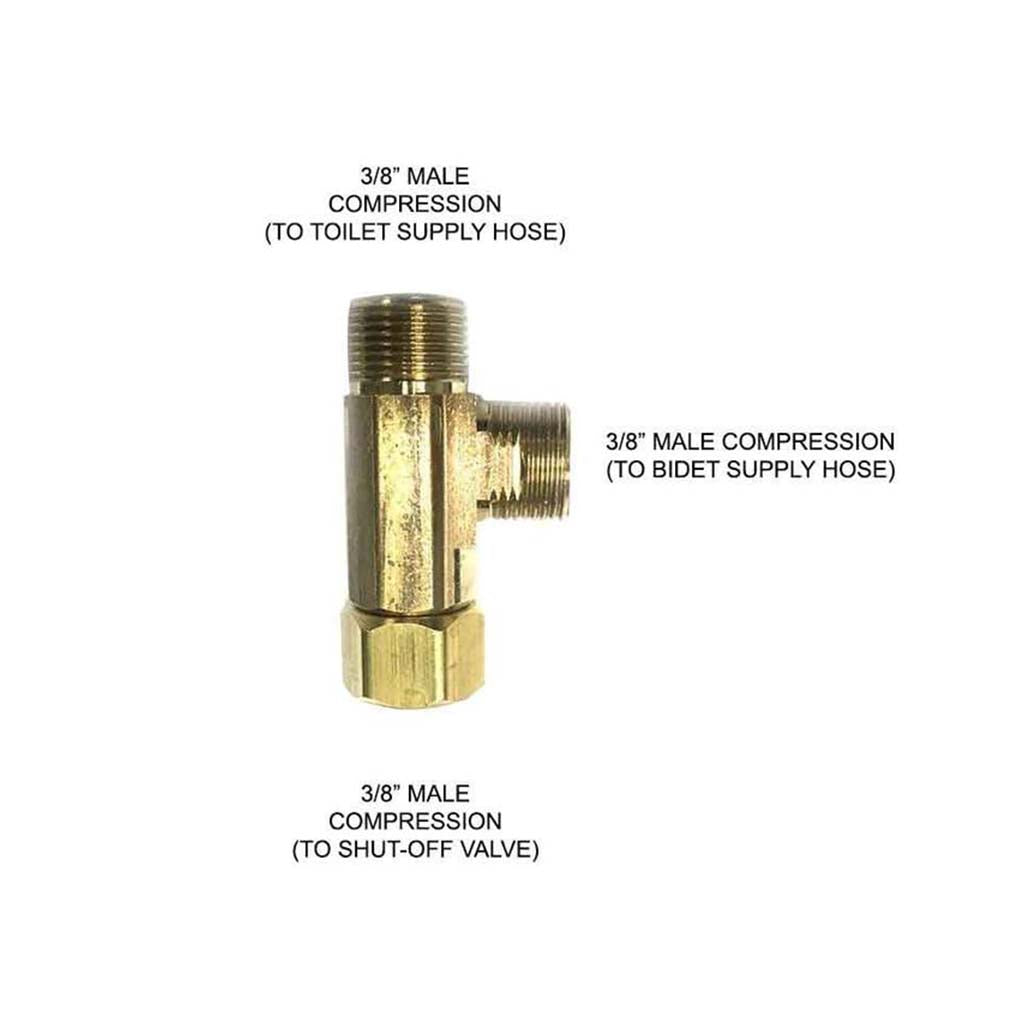

This brass tee has 3/8" compression threads on all 3 sides.


Top: 3/8" compression female threaded
Side: 3/8" compression male threaded
Bottom: 3/8" compression male threaded

**Not compatible with the Alpha JX or iX Hybrid**



Is your toilet compatible with an Alpha Bidet?



1 PIECE VS 2 PIECE

  • 2 piece toilets are the most common residential style toilet. If you have one, great, our Alpha Bidets will fit.

  • 1 piece toilets have the tank and bowl molded into a seamless unit. If you have one, you'll want to check the "Special Cases" section below.

MEASURING YOUR BOWL

  • A: The JX and ONE models require a minimum of 1.5" of clearance. The iX Hybrid and GX Wave need 1.75"

  • B: 5.5" is the standard, which the JX requires. The ONE, iX Hybrid, and GX/GXR Wave will accept a range of 5"-7"

  • C: Most elongated bowls measure 18.5" from the bolts. Most rounds measure about 16.5"

SPECIAL CASES



1 PIECE TOILET, NO CURVE

If your 1 piece toilet's tank meets the bowl at close to a 90 degree angle, then it's compatible.

Examples:
Kohler Memoirs (pictured)
TOTO Ultramax & Supreme
Woodbridge T-0001

1 PIECE TOILET, FRENCH CURVE

If your 1 piece toilet has a tank where the sides curve forward, then it MAY NOT be compatible. Contact us for more details.

Examples:
Kohler San Raphael (pictured, only JX fits)
Kohler San Souci (JX and ONE fit)
Kohler Rialto (not compatible)

COMPACT ELONGATED TOILET

Some elongated toilets have a more compact bowl and not full size. They usually fit an elongated Alpha Bidet, but it may hang over the front edge of the bowl by 1".

Examples:
Kohler Santa Rosa (pictured)
American Standard Compact Cadet 3

SKIRTED TOILET

Skirted toilets have a concealed trapway for easy cleaning. They are usually compatible with Alpha Bidets, but may require extra installation parts.

Examples:
Kohler Salle (pictured)
TOTO Aquia
